ClusterIP vs NodePort: A Comprehensive Comparison

In the realm of Kubernetes networking, there are several options available for exposing services to the outside world. Two commonly used methods are ClusterIP and NodePort. Both serve the purpose of providing external access to services, but they differ in their implementation and functionality. In this article, we will delve into the details of ClusterIP and NodePort, exploring their unique features, technical differences, and the pros and cons of using each. By the end, you will have a clear understanding of when and why to choose ClusterIP over NodePort, or vice versa.

Understanding the Basics of ClusterIP and NodePort

Defining ClusterIP

ClusterIP is a Kubernetes service that exposes an internal IP address within the cluster. It allows for communication between various services running within the cluster. When a request is made to the ClusterIP, Kubernetes automatically load-balances the request to a backend pod associated with the service.

ClusterIP is particularly useful for inter-service communication within the Kubernetes cluster. It provides a stable virtual IP address that remains constant even if the underlying pods are scaled up or down. This ensures that other services can reliably reach the intended destination without needing to be aware of the dynamic nature of the backend pods.

Defining NodePort

On the other hand, NodePort allows for external access to services by mapping a specific port on each node in the Kubernetes cluster. Any traffic that arrives at the specified port is forwarded to the associated service and then to a backend pod. NodePort essentially opens a specific port on every node, making the service accessible on the external IP address of any of the nodes.

NodePort is commonly used when you need to expose a service to external clients outside the Kubernetes cluster. By opening a port on each node, NodePort provides a simple way to access services from outside the cluster without the need for additional network configuration. It acts as a bridge between the internal cluster network and external clients, allowing for seamless communication across different environments.

Key Features of ClusterIP and NodePort

Unique Features of ClusterIP

One of the key features of ClusterIP is its ability to provide only internal access to services. This means that services exposed through ClusterIP are not accessible from outside the cluster. This can be beneficial in cases where you want to restrict external access to your services.

Additionally, ClusterIP offers automatic load balancing of requests to the backend pods, ensuring that the load is evenly distributed among them. This helps in achieving high availability and improved performance.

ClusterIP operates at the network layer, providing a virtual IP address to represent a set of pods. This abstraction shields the clients from the complexities of the underlying pod IPs, enhancing the overall robustness of the system. By isolating internal services, ClusterIP enhances security by reducing the attack surface exposed to external threats.

Unique Features of NodePort

Unlike ClusterIP, NodePort allows for external access to services. This means that you can access the services from outside the cluster, using the IP address of any of the nodes and the specific port assigned to the service.

NodePort also provides the ability to run non-HTTP services, making it suitable for a wide range of use cases. Whether you need to expose a web application or communicate with a database, NodePort can handle it all.

NodePort simplifies the process of accessing services by mapping a specific port on every node in the cluster to the service. This makes it easy to reach the service without the need for complex networking configurations. Additionally, NodePort can be used in conjunction with other Kubernetes services like LoadBalancer to create a comprehensive networking solution for your applications.

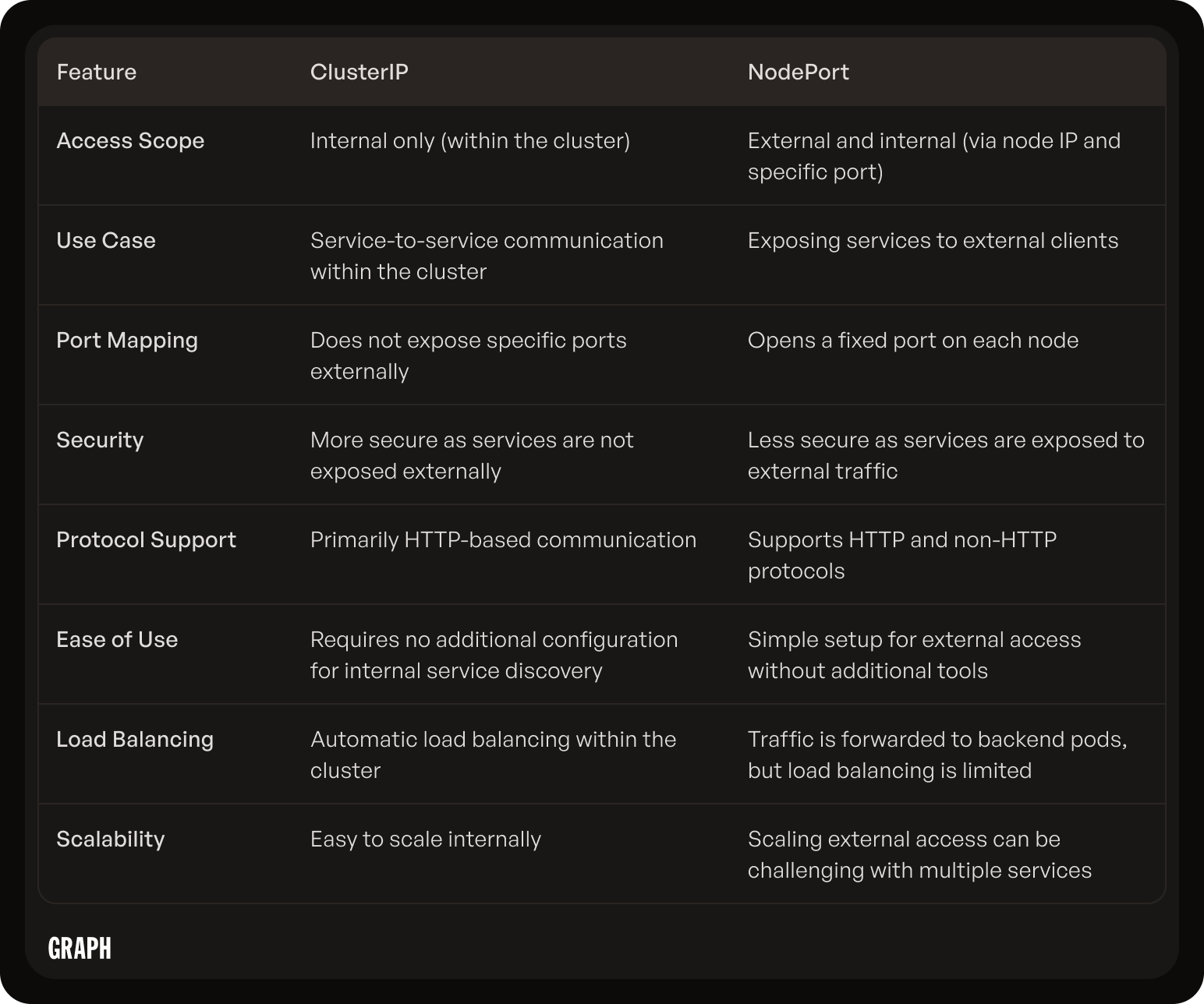

The Technical Differences Between ClusterIP and NodePort

How ClusterIP Works

ClusterIP operates at the transport layer of the OSI model, providing a virtual IP address for the service within the cluster. Requests made to this virtual IP address are automatically load-balanced to the backend pods associated with the service. This load balancing ensures that requests are evenly distributed across the healthy pods, providing high availability.

Furthermore, ClusterIP is an excellent choice for internal communication within the cluster. It allows different services to interact with each other using a stable virtual IP address, abstracting the complexity of pod IP addresses. This abstraction simplifies service discovery and communication, making it easier for developers to build and scale applications within the Kubernetes environment.

How NodePort Works

In contrast, NodePort operates at the network layer of the OSI model. It opens a specific port on each node in the cluster and forwards any traffic arriving at that port to the backend pod associated with the service. This allows for external access to the services by reaching any node in the cluster's IP address on the specified port.

Moreover, NodePort is commonly used when you need to expose a service to external clients outside the Kubernetes cluster. By opening a specific port on each node, NodePort provides a straightforward way to access the services running within the cluster from external sources. This can be useful for scenarios where you want to expose a web application or an API to the internet without the need for complex networking configurations.

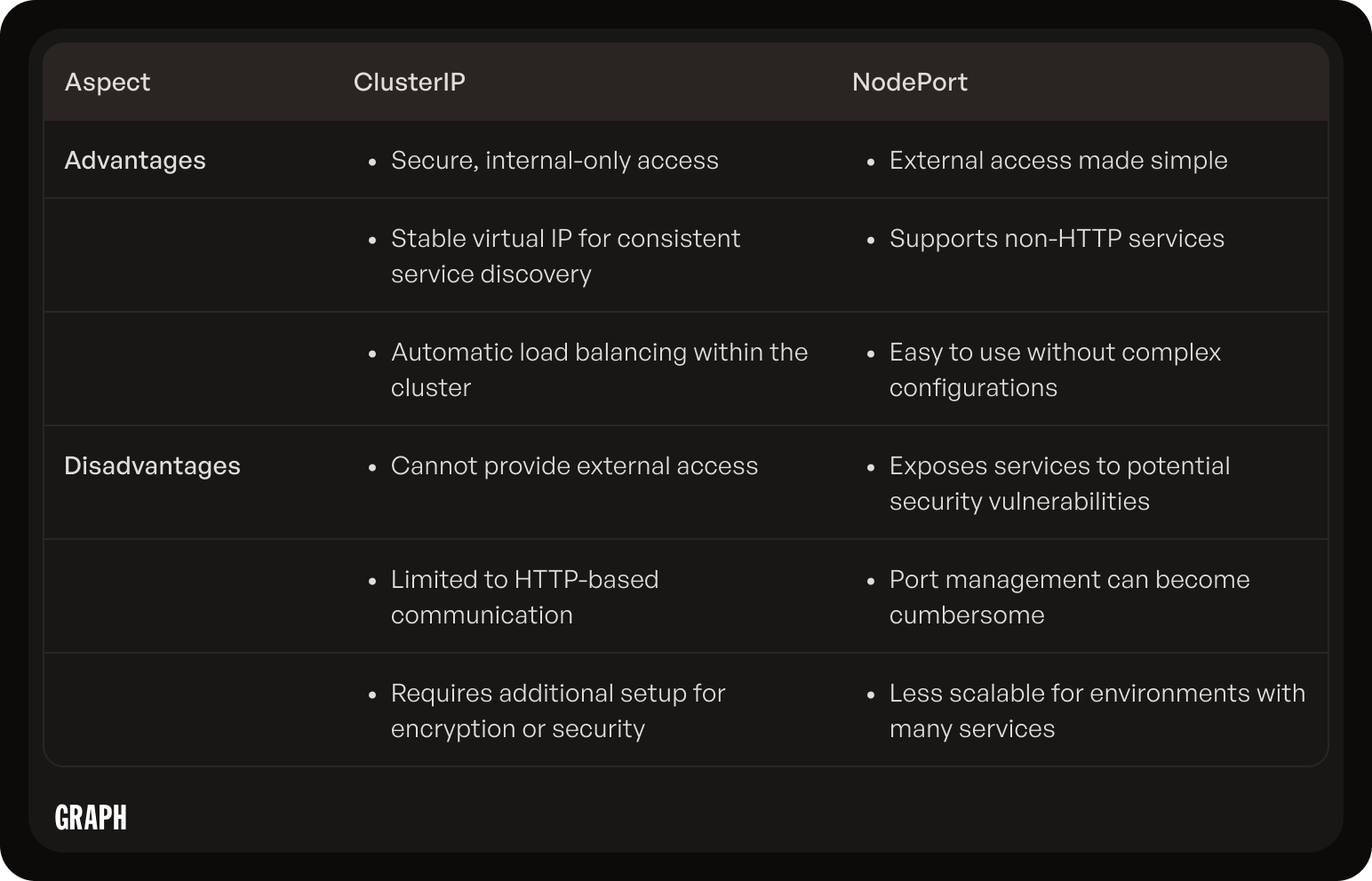

Pros and Cons of Using ClusterIP

Advantages of ClusterIP

ClusterIP offers several advantages in certain scenarios. Firstly, it provides secure and isolated access to services within the Kubernetes cluster. As requests to ClusterIP cannot originate from outside the cluster, it helps in safeguarding sensitive data and services from unauthorized access.

Secondly, by abstracting away the implementation details of the backend pods, ClusterIP simplifies service discovery within the cluster. The virtual IP address can be used as a single entry point for accessing all related services without worrying about the specific pods they are running on.

Moreover, ClusterIP enhances network efficiency by allowing for load balancing across multiple pods. This means that even if one pod fails or becomes overloaded, the ClusterIP service can intelligently distribute traffic to other healthy pods, ensuring high availability and reliability for the applications.

Disadvantages of ClusterIP

However, ClusterIP has its limitations. As it is designed to provide internal access only, it cannot be used for exposing services to users outside the cluster. If you require external access, you would have to consider other options like NodePort or LoadBalancer.

ClusterIP also lacks built-in support for handling non-HTTP traffic. If you need to expose a non-HTTP service, you'd have to rely on other Kubernetes components or additional configurations to make it work with ClusterIP.

Furthermore, another drawback of ClusterIP is that it does not provide encryption for traffic between pods. This means that data transmitted between pods using ClusterIP may be vulnerable to interception. To address this security concern, additional measures such as implementing Transport Layer Security (TLS) or using network policies within Kubernetes can be employed to secure communication between pods.

Pros and Cons of Using NodePort

Advantages of NodePort

The main advantage of NodePort is its ability to provide external access to services without any additional setup or complex configurations. By assigning a specific port on each node, you can easily reach any service from outside the cluster, simplifying access for users or applications.

NodePort also supports non-HTTP services, allowing you to expose a wide range of applications and protocols. This flexibility makes it a popular choice for various use cases, including exposing APIs, running external monitoring tools, or connecting to external databases.

Moreover, NodePort offers a straightforward way to manage network traffic within a Kubernetes cluster. With NodePort, you can easily route traffic to the appropriate services based on the assigned ports, streamlining communication between different components of your application architecture.

Disadvantages of NodePort

However, NodePort does have its drawbacks. One of the major concerns is the security implications of exposing services through specific ports on each node. This potentially exposes the services to security vulnerabilities and increases the attack surface.

NodePort can also be challenging to scale, especially if you have a large number of services or a dynamic environment with a high frequency of service creation or deletion. The manual assignment of ports on each node can become cumbersome and error-prone in such scenarios.

Additionally, when using NodePort, there may be limitations in terms of port availability, especially in environments where certain ports are already in use. This can lead to conflicts and port exhaustion, requiring careful planning and management to avoid disruptions in service availability.

Choosing Between ClusterIP and NodePort

When to Use ClusterIP

ClusterIP is an ideal choice when you need to provide internal access to services within the Kubernetes cluster. It ensures the privacy and isolation of services, making them accessible only from within the cluster itself. Use ClusterIP when you want to maintain a secure and controlled environment for your services, without exposing them to the outside world.

One of the key advantages of using ClusterIP is that it allows for seamless communication between different microservices within the cluster. This internal networking capability is essential for applications that rely on multiple services working together to deliver complex functionalities. By utilizing ClusterIP, you can establish a reliable and efficient communication channel that enhances the overall performance and reliability of your Kubernetes applications.

When to Use NodePort

NodePort is the go-to option when you require external access to your services, either for users or other applications. It offers a straightforward way to expose services on a specific port across all nodes in the cluster, making them easily reachable from outside. Use NodePort when you need to provide public access to your services without the need for complex configurations or additional components.

Furthermore, NodePort simplifies the process of load balancing incoming traffic across multiple pods by distributing requests evenly among the nodes in the cluster. This load distribution mechanism ensures optimal resource utilization and prevents any single node from becoming overwhelmed with traffic. By leveraging NodePort, you can achieve high availability and scalability for your Kubernetes services, enabling them to handle varying levels of incoming requests with ease.

Conclusion: ClusterIP vs NodePort - Which is Better?

In conclusion, both ClusterIP and NodePort serve different purposes in Kubernetes networking and have their own set of advantages and disadvantages. The choice between the two depends on your specific requirements and the level of external access you need for your services.

If you prioritize security, privacy, and the need for internal access only, ClusterIP is the way to go. On the other hand, if external access and simplicity are more important to you, NodePort is the preferred option.

Ultimately, understanding the differences and use cases of ClusterIP and NodePort will empower you to make an informed decision for your Kubernetes networking needs.
